Behringer BCD3000 Disassembly

Written By: Tobias Isakeit
  • Comments: 4
Behringer BCD3000 Disassembly

Difficulty

Moderate

Steps

11

Time Required

No estimate

Introduction

  1. FJ2FJELAX1rmbjej

    • Unplug from all cables

  2. 62LnYcDOY4NIVtNM
    62LnYcDOY4NIVtNM
    OD1GPkBmK4h4MVMZ

    • unscrew two Phillips screws on each side of the BCD3000

    • If the screws sit too tight, you can use the extension for better torque

  3. 6LP5QTR1yAYT4nxO
    6LP5QTR1yAYT4nxO
    ZTEZPiDpOp1iRtUe

    • unscrew another two Phillips screws on each side

  4. fZDfUAQuVDXJLwpn
    fZDfUAQuVDXJLwpn
    ZIlZ6ZTwJHNAxODu
    WBKvB5hN4VCAYU6i

    • Lift the upper control part.

    • Be careful, there are still some cables connected to the lower section.

    • Disconnect the cables by walking them out of their sockets.

  5. 3bmkbAYmF2o2yGIS

    • Remove the upper part completely.

  6. O4VWvoVL2KFSJYSt

    • Disconnect the two cables from the lower section to the connector board.

  7. CaGxAtovX5fPersV
    CaGxAtovX5fPersV
    2ccXEYjDaVxKuPsM
    mTyMRwNnHCUi3vWO

    • Slide the lower section to the front.

    • Now you can lift it and take it aside.

  8. KyqlNselWKafwbIo
    KyqlNselWKafwbIo
    IrilvRTnxOGtg1lM
    64fIxssdxxPmR4va

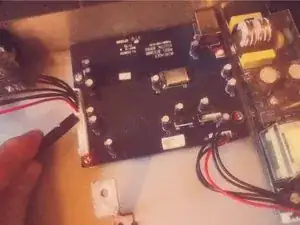

    • Disconnect the separate boards.

    • Now you can take the modules out by unscrewing them from the case.

  9. VQXc4JmCqMM2GRZH
    VQXc4JmCqMM2GRZH
    I1DmUjaA4NFhVpBK

    • The jog wheels on the front panel can be taken off by using a spudger and levering them out.

  10. ceOwOJpQCGFRPOHR
    ceOwOJpQCGFRPOHR
    neUSPaxeBh6KnqKO

    • The knobs can easy be removed just by pulling.

  11. HplwlMWKDteIY2EK
    HplwlMWKDteIY2EK
    1P6bnPChNRlBLMMg
    j3Aoou5hZh3VoYIq

    • Same goes for the knobs on the top section of the front panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.
